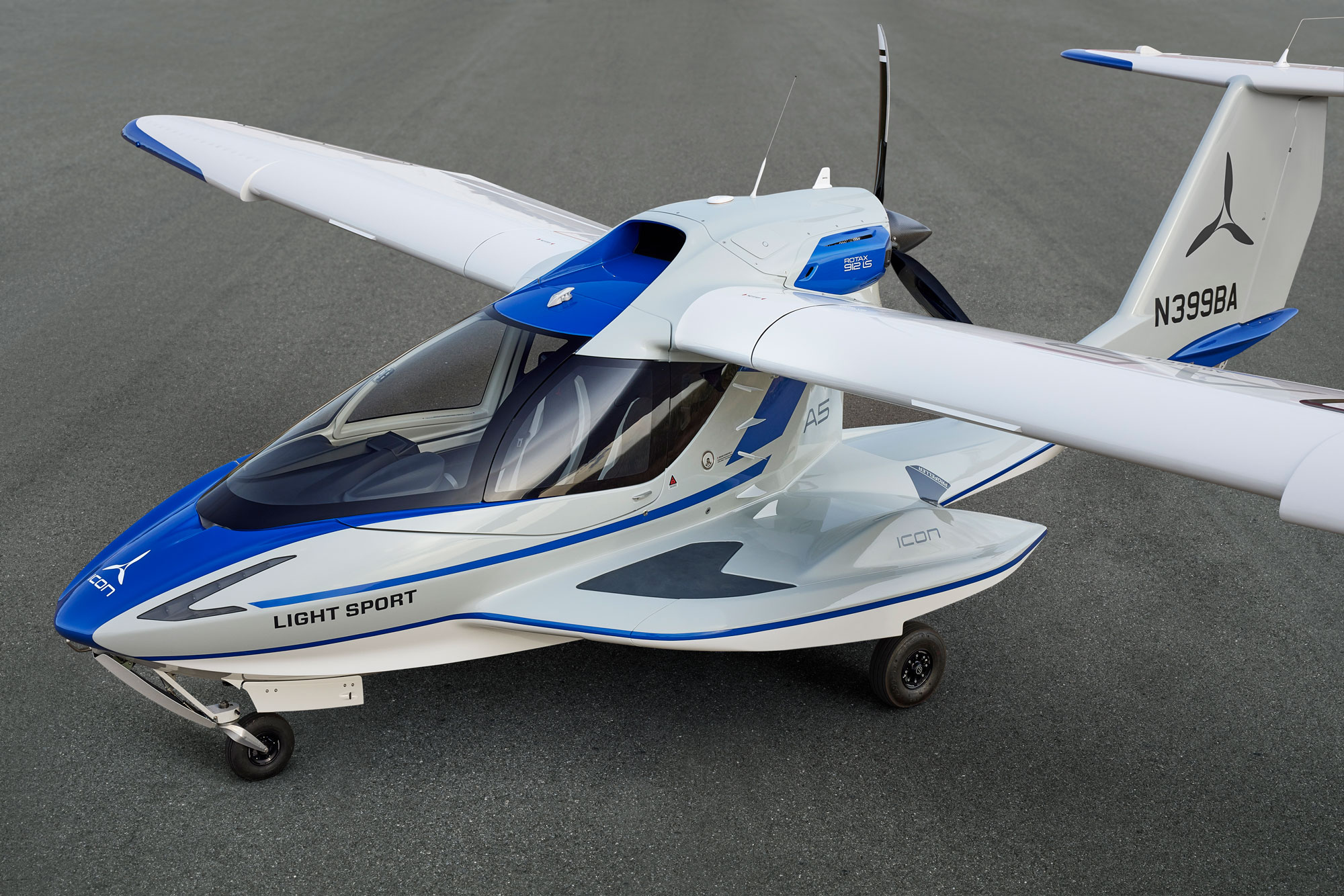

ICON A5 Specs

Amphibious Light Sport Aircraft (LSA)

The A5 reinvents recreational aviation and lets you bring the exhilaration of flight to life like never before. Light Sport Aircraft (LSA) are targeted to pilots who primarily fly for recreation. LSA are designed to be easy to fly, lightweight, and have low operating costs.

New for 2021

Garmin G3X Touch™ now available

The state-of-the-art interface from Garmin has come to the Light Sport ICON A5. The G3X Touch™ display with an optional 2 axis autopilot adds situational awareness and sophistication to the 2021 ICON A5 Limited Edition (S-LSA). Review configurations below and discover how to take your adventure flying to a new level.

0

1

0

Garmin G3X with Autopilot

Garmin G3X Touch™ with Autopilot

Add the comfort and convenience of 2-axis autopilot to your G3X Touch™-equipped A5. The autopilot system in the ICON A5 includes the Garmin GMC 507 control panel, which provides a dedicated interface and allows the pilot to control the advanced features offered by Garmin, including autopilot modes such as GPS Navigation, Indicated Airspeed Hold, Vertical Speed Hold, Altitude, Heading and Track modes and independent flight director. The control wheel on the GMC 507 makes for easier pitch, vertical speed, and airspeed adjustments, while separate knobs allow twist-control of heading/track and altitude. For added safety, the panel’s advanced LVL mode button commands automatic recovery from steep or unusual attitudes, enabling the autopilot to return the aircraft to straight-and-level flight.

Garmin G3X

Garmin G3X Touch™

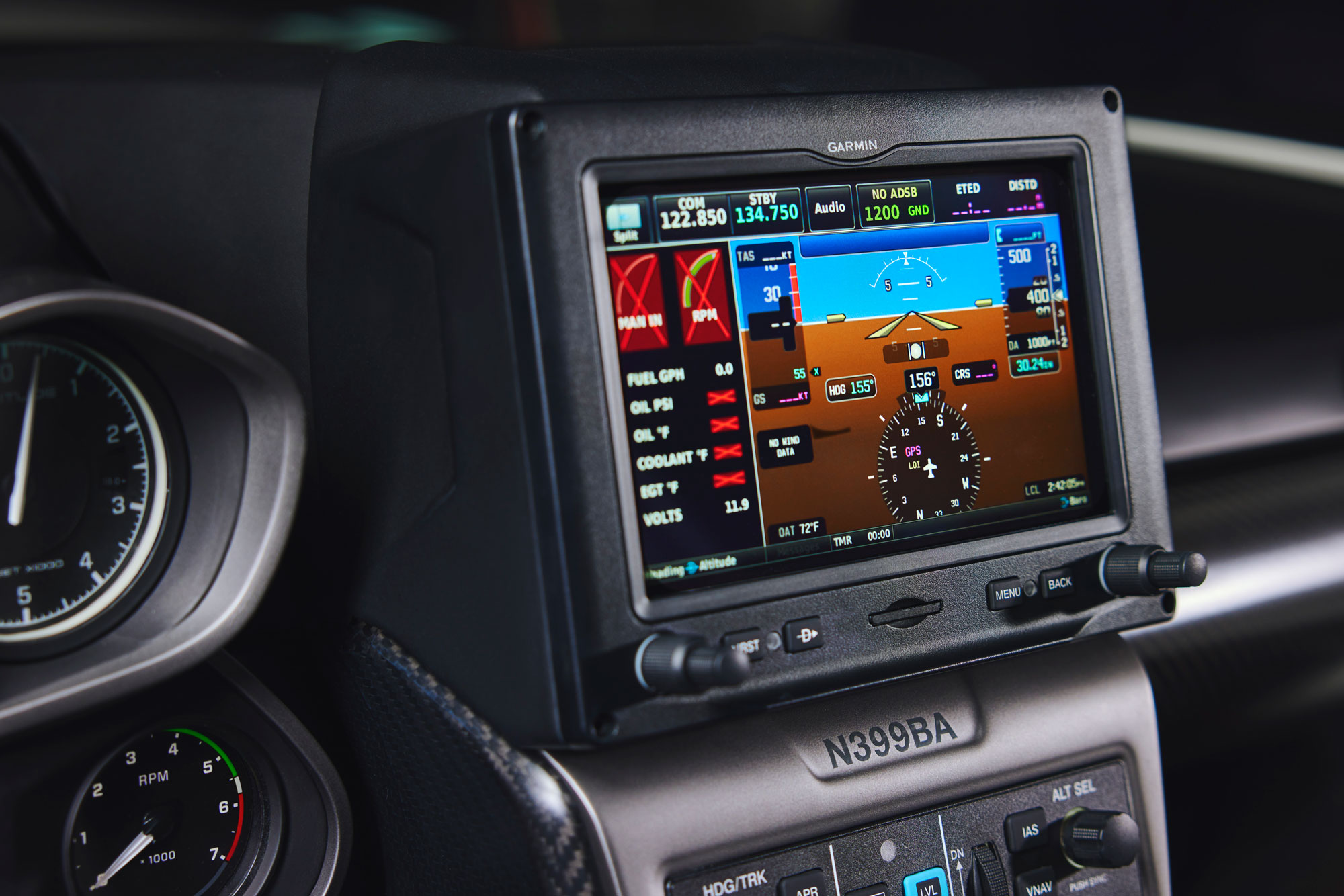

The Garmin G3X Touch™ 7″ flight display includes new components that provide significantly increased capability and situational awareness. The G3X integrates with other Garmin avionics, allowing seamless control and display of information such as traffic, weather, radios, audio, and more.

• Split and full-screen display modes for moving map, synthetic vision, and attitude indicator with HSI.
• Integrated touch screen control of both Radio and Transponder.
• Display of engine parameters of the Rotax 912iS.
• ADS-B In and Out included.
• Bluetooth transfer of flight plans.
• Realtime display of outside air temperature, true airspeed, and density altitude

Garmin aera 796

Garmin aera® 796

The standard avionics configuration on the ICON A5, the aera 796 provides 3-D Navigation with Multi-Function Display (MFD) and Electronic Flight Bag (EFB) capability. The aera 796 is installed with a detachable mount so that you can program your flight plan from the comfort of your couch, boat dock, or FBO. It features a 7″ sunlight-readable touchscreen and provides several different display modes, including 3D Vision and split-screen moving map, which displays terrain, obstacles, airports, traffic, and more.

Flying made easy.

Intuitive. Ergonomic. Beautifully simple.

0

1

2

AoA

Angle of Attack (AoA)

Small gauge. Big difference. This instrument is unique to the A5. It simplifies flying, telling you everything you need to know during flight. Located at the top of the instrument cluster and within easy line of sight for the pilot, the Angle of Attack gauge provides an instantaneous read of how close the wing is to stalling. This informs the pilot how much more it’s possible to ask of the airplane, regardless of the atmospheric conditions, the maneuver, or how the plane is loaded and configured.

Windows

Removable Side Windows

Enjoy flying with the windows out. The A5 provides an immersive flying experience unlike anything you’ve ever felt before. The side windows can be removed easily with one hand and stowed in the baggage area.

Canopy

See the world in 3-D

With the engine in the back and a low instrument panel, the A5’s panoramic canopy allows you see the world in a new dimension.

Intuitive Controls

Flight Control Stick

Inspired by military aircraft, the A5 uses a center stick to control the ailerons and elevator. This intuitive interface provides direct feedback to the pilot, in keeping with the A5’s sport flying mission.

Avionics

Integrated GPS

The A5 is available with the removable Garmin Aera 796 GPS or the Garmin G3X Touch™ flight display (not pictured). These touch screen displays have customizable display modes, 3D terrain views, moving maps with sectional markings, secondary instrument clusters, and flight planning systems. ADS-B Out comes standard and ADS-B In is also available as an option.

Art meets aviation.

A stunning product of function.

0

1

2

Engine

Rotax 912iS Sport

Among the most widely used light aircraft engines, the Rotax 912 is reliable, lightweight, and efficient. The A5 uses the electronically fuel injected version, the 912 iS Sport, which delivers even better efficiency and extremely simple operation in all conditions. It accepts either 100LL and 91 octane auto gasoline.

Lighting

Advanced Running Lights

The A5 uses LEDs for all exterior lighting. In addition to consuming less energy and generating less heat, they are lightweight, exceptionally bright and allow very sharply defined beams. Custom LED landing and taxi light assemblies are a defining part of the A5’s design.

Folding Wings

Folding Wings

Easy as 1, 2, 3. It takes one person just two minutes to unfold the A5’s wings and be ready for the open skies. Elegantly simple.

Seawings

Seawings™ Platforms

These platforms provide stability on the water as well as convenient platforms to check engine vitals and enter the aircraft on land, from a dock, or from the water. The tips are removable in a matter of minutes, so they can be replaced if damaged.

Safety Innovation

Peace of mind at 1,000 feet.

Spin-Resistant Airframe (SRA)

Always under control. After thousands of hours of testing and development, the A5 is the world’s first spin-resistant Light Sport Aircraft.

ICON Parachute System (IPS)

Safe and Sound. IPS technology has more than 300 documented lives saved, some at altitudes as low as a few hundred feet. So if you encounter the unexpected, we’ve got you covered. Literally.

Angle of Attack (AoA)

Small gauge. Big difference. This single gauge tells you everything you need to know. Any speed. Any load. Any maneuver.

Aircraft Accessories

Maximize the versatility of your A5.

A5 Accessories

Get the most from your ICON A5 with accessories that let you focus on flying.

View Accessories

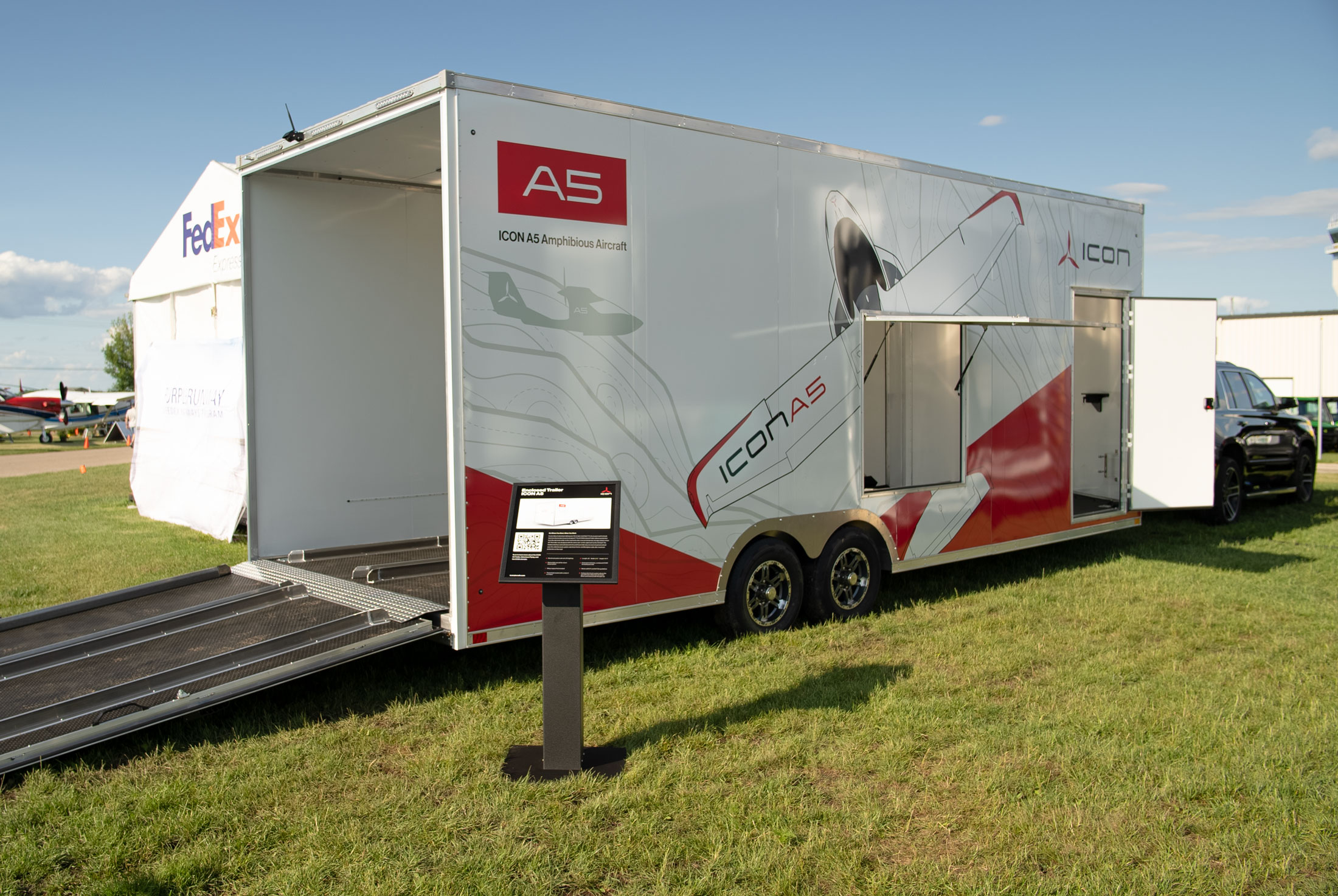

ICON Amphib Trailer

No airport? No problem. Load or unload from land or water. Get away from the airport environment and take your A5 adventures on the road.

Learn More

Learn about owning the A5
